A, product introduction
Steel box light BaoWenWu panel by cold bending thin-wall steel framework, by the modified polystyrene particle concrete and protect WenXin materials, with steel mesh, composite casting of bearing, heat preservation, light, sound insulation, fire, and good performance in one of the new building light sheet.
Mainly applied to suitable for seismic fortification intensity of 8 degrees or less regional environment of grade 1 and 2, industrial and civil buildings. Such as industrial factory building, large warehouses, sports venues, boiler room, and villa etc.
Second, the product specifications
Steel box of lightweight insulation space truss roof board: size is 2400 * 2400 ~ 4000 * 2400 mm, thickness is 100 ~ 180 mm.
Suggested that as far as possible choose standard plate 3000 x 3000 mm
Steel frame of lightweight insulation large roof plate: size is 4500 ~ 9000 (plate across) x 1500 ~ 3000 mm (width), thickness is 100 ~ 360 mm.
Suggested that as far as possible choose standard plate 6000 x 1500 mm
According to actual needs, to produce various specifications of the special-shaped plate, such as side board, cornice, open orifice, missing Angle plate, triangle and quadrilateral plate and the modulus of plane plate size, etc.

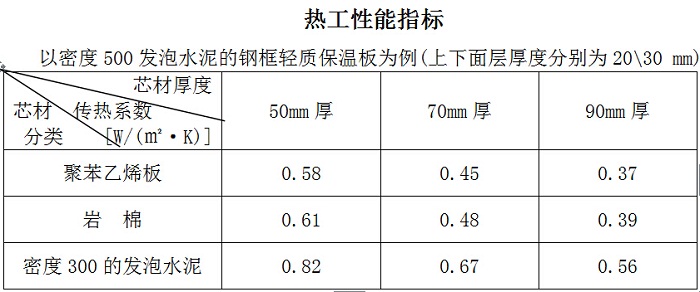

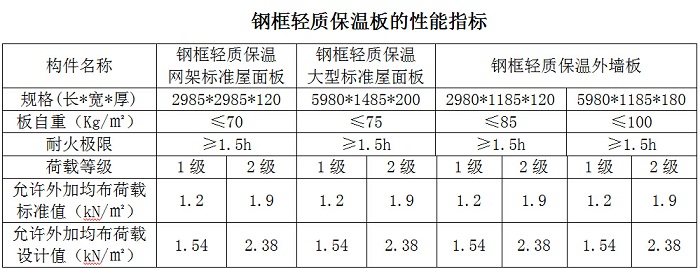

Three, product performance indicators
